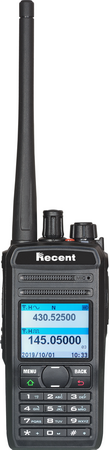

RS-569D VHF&UHF Dual Band DMR Digital Handheld Radio

Features

　　Dual Band, Dual Display, Dual Watch

　　Support AMBE3000 (AMBE++) Vocoder

　　Direct Dual-slot Technology

　　Manual Frequency Input

　　Digital and Analog Dual Mode

　　Multi Call Mode: Individual Call, Group Call, All Call

　　Remote Kill and Activate

　　Short Message Function

　　Emergency Alarm

　　Scan, PC Programming Function

　　High/Low Power Selectable

　　Voice Encryption

　　Recording Function (Optional)

       Specifications

　　Frequency: 136-174MHz & 400-470MHz

　　Channel Capacity: 4000 Channels (250 Zones * 16 Channels)

　　Output Power: 5W/1W

　　Battery Pack: 1800mAh Li-ion Battery

　　Channel Spacing: 12.5KHz/25KHz

　　Normal Operating Voltage: DC7.4V±15%

　　Operating Temperature: -20℃~+60℃

　　Frequency Stability: ±2.5ppm

　　Analog Sensitivity: ≤0.22uV/-120dBm

　　Digital Sensitivity: -119dBm (BER≤5%); -117dBm (BER≤1%)

　　QT/DQT Receiving Sensitivity: ≤0.25uV/-119dBm

　　Adjacent Channel Selectivity: ≥50dB@12.5KHz，≥55dB@25KHz

       4FSK Modulation Accuracy: ≤5%@25℃，≤10%@extreme temperature

　　Dimensions(WxHxD): 60×135×36mm

　　Weight: 265g (With Battery and Antenna)
